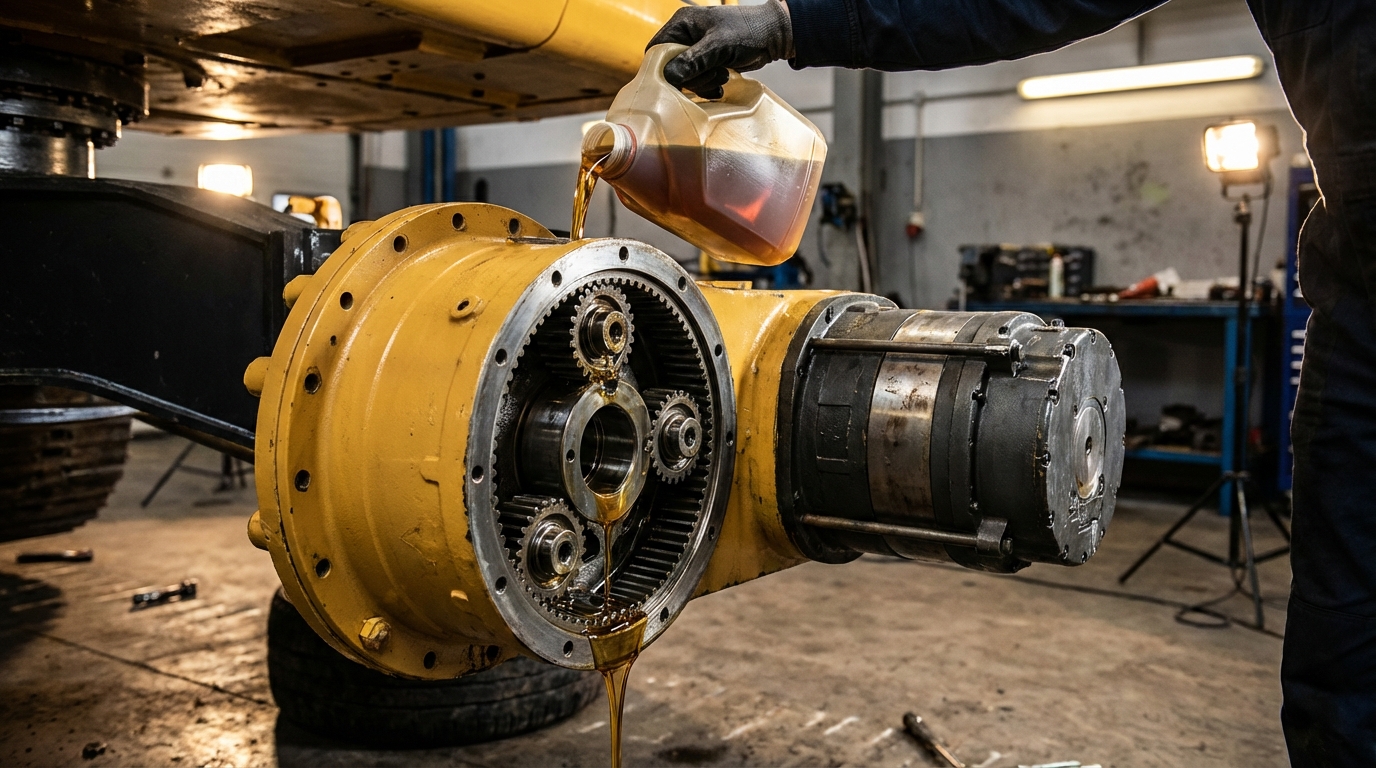

Final Drive Maintenance Guide: Protect Your Most Expensive Undercarriage Component

The final drive is one of the most critical—and expensive—components on any tracked machine. Whether you’re running excavators, dozers, or compact track loaders, a failed final drive means your machine isn’t moving. And with replacement costs ranging from $8,000 to well over $25,000 per side, prevention isn’t just smart—it’s essential.

This guide covers everything you need to know about final drive maintenance, from daily inspections to knowing when it’s time for a rebuild.

What Is a Final Drive?

The final drive (also called a travel motor or track drive) is the component that converts hydraulic power into mechanical rotation to move your tracks. It’s located at the rear of each track frame and consists of:

• Hydraulic motor: Converts hydraulic pressure to rotational force
• Planetary gear reduction: Multiplies torque while reducing speed
• Bearings and seals: Support rotating components and contain oil
• Housing: Protects internal components and holds gear oil

The planetary gear system inside your final drive is an engineering marvel—multiple planet gears rotating around a central sun gear, all bathed in oil and spinning thousands of times per hour. When this system works properly, it’s nearly silent. When it fails, the results are catastrophic and expensive.

Why Final Drives Fail

Understanding why final drives fail helps you prevent those failures. Here are the primary causes:

1. Oil Leaks (Most Common)

A small seal leak might seem minor, but it’s the beginning of the end for your final drive. Here’s what happens:

1. Seal fails → oil slowly leaks out
2. Oil level drops → gears lose lubrication
3. Metal-on-metal contact → accelerated wear
4. Heat builds up → seals degrade further
5. Water and debris enter → contamination
6. Catastrophic failure → expensive rebuild or replacement

2. Contamination

When seals fail, it’s not just oil going out—it’s contamination coming in. Water, dirt, and debris entering the final drive cause:

• Corrosion on gear surfaces and bearings
• Abrasive wear from dirt particles
• Oil breakdown from water mixing with lubricant

3. Overloading and Shock Loads

Final drives are built tough, but they have limits:

• Repeatedly exceeding travel speed on grades
• Constant high-speed reverse operation
• Shock loads from hitting obstacles
• Operating on severe slopes without proper technique

4. Wrong Oil or Contaminated Oil

Using incorrect oil viscosity or contaminated oil accelerates wear:

• Too thin: inadequate film strength under load
• Too thick: increased operating temperature, poor flow
• Contaminated: abrasive particles cause accelerated wear

5. Heat Damage

Final drives generate significant heat during operation. Causes of overheating include:

• Low oil level
• Plugged breather
• Extended high-speed travel
• Operating in extreme ambient temperatures
• Dragging brakes (if equipped)

Inspection Schedule

Consistent inspections catch problems early. Here’s what to check and when:

Daily (Walk-Around)

• Visual oil leak check: Look for fresh oil on tracks, sprockets, and ground under final drives
• Oil level sight glass: If equipped, verify oil is visible in the sight glass
• Unusual noise: Listen during startup and initial travel
• Operating temperature: Note if one side feels significantly hotter than the other

Every 50 Hours

• Clean exterior: Remove mud and debris from final drive housing
• Inspect seals: Look for weeping, cracking, or damage
• Check breather: Ensure it’s not plugged with debris
• Verify mounting bolts: Check for looseness (torque if needed)

Every 250-500 Hours

• Check oil level: Remove check plug and verify proper level
• Assess oil condition: Look for water contamination (milky appearance) or metal particles
• Magnetic plug inspection: If equipped, check for metal accumulation
• Track tension check: Improper tension affects final drive loading

Every 1,000-2,000 Hours

• Oil change: Replace gear oil per manufacturer specifications
• Seal inspection: Detailed inspection of all seals
• Breather replacement: Replace breather if showing signs of clogging

Oil Check Procedure

Checking final drive oil is simple but often overlooked. Here’s the proper procedure:

Step 1: Position the Machine

• Park on level ground
• Rotate tracks so the fill/check plug is at the 3 o’clock or 9 o’clock position (horizontal)
• This ensures accurate level reading

Step 2: Clean the Area

• Wipe around the check plug thoroughly
• Remove any mud or debris that could fall into the opening
• Use a clean rag—contamination is the enemy

Step 3: Remove and Inspect

• Remove the check/level plug
• Oil should be at or just below the plug opening
• Note the oil color and consistency:
  • Clear amber/brown: Normal
  • Milky or gray: Water contamination
  • Very dark or burnt smell: Overheating
  • Metal flakes visible: Internal wear

Step 4: Top Off If Needed

• Use only the manufacturer-specified oil
• Add slowly and recheck level
• Don’t overfill—excess pressure can damage seals

Step 5: Reinstall Plug

• Clean plug threads
• Install with new washer if required
• Torque to specification

Oil Change Steps

Regular oil changes remove contaminants and ensure proper lubrication. Here’s the complete procedure:

Materials Needed

• Correct oil type and quantity (check manual)
• Drain pan
• New drain plug washer
• Clean rags
• Torque wrench

Procedure

1. Warm Up the Machine

• Operate for 10-15 minutes
• Warm oil flows better and carries more contaminants out

2. Position for Draining

• Rotate track so drain plug is at lowest point (6 o’clock)
• Position drain pan under final drive

3. Remove Fill Plug First

• This prevents vacuum lock during draining
• Located at top of final drive (12 o’clock when draining)

4. Remove Drain Plug

• Oil will flow freely
• Allow complete drainage (5-10 minutes)
• Inspect drained oil for contamination

5. Inspect Magnetic Plug

• Some drain plugs have magnets to capture metal particles
• Light fuzz is normal
• Chunks or heavy accumulation indicates problems

6. Reinstall Drain Plug

• Clean threads thoroughly
• Use new washer if required
• Torque to specification

7. Add New Oil

• Rotate track to put fill plug at 3 or 9 o’clock
• Add oil slowly through fill port
• Stop when oil reaches fill hole level

8. Run and Recheck

• Operate machine briefly (travel back and forth)
• Recheck level and top off if needed

Warning Signs of Problems

Catching problems early can mean the difference between a seal replacement and a complete rebuild. Watch for these warning signs:

Visual Signs

• Oil stains on tracks or ground: The most obvious sign of seal failure
• Oil spray pattern on undercarriage: Indicates leak while operating
• Discoloration of housing: May indicate overheating
• Damaged or torn seal lips: Visible on external seals

Audible Signs

• Whining or humming: Often indicates bearing wear
• Grinding or growling: Metal-on-metal contact—stop immediately
• Clicking or popping: Possible gear damage
• Increased noise when loaded: Wear is more apparent under stress

Operational Signs

• Reduced travel speed: One side slower than other
• Track pulling or drifting: Uneven power delivery
• Excessive heat: One drive significantly hotter than other
• Increased fuel consumption: Mechanical resistance requires more hydraulic power

Oil Analysis Signs

• High iron content: Gear wear
• High copper/bronze: Bearing wear
• Water present: Seal failure allowing moisture intrusion
• Silicon (dirt): Contamination from failed seals

Common Mistakes to Avoid

Even experienced operators make these errors. Here’s what to avoid:

The Pressure Washer Problem

High-pressure washing is a major cause of premature seal failure. Water forced past seals at 3,000+ PSI introduces contamination and damages seal lips. Instead:

• Use lower pressure settings near seals
• Keep nozzle at least 12 inches away
• Never direct spray at seal surfaces
• Allow machine to run after washing to purge any water

The “It’s Just Weeping” Myth

A seal that’s “just weeping” is a seal that’s failing. The progression is predictable:

1. Weeping: Slight moisture, easy to ignore
2. Seeping: Definite oil film, still operational
3. Leaking: Oil drops, accelerating damage internally
4. Failed: Significant oil loss, internal damage occurring

Address problems at stage 1 or 2—by stage 3, you may already have internal damage.

Extending Final Drive Life

Beyond basic maintenance, these practices significantly extend final drive life:

Operational Best Practices

Minimize High-Speed Travel

• Final drives work harder at high track speeds
• Use transport mode only when necessary
• Reduce speed on rough terrain

Avoid Excessive Counter-Rotation

• Spinning tracks in opposite directions stresses drives
• Use graduated turns when possible
• Counter-rotation generates maximum heat and stress

Proper Track Tension

• Too loose: track slap damages components
• Too tight: increased bearing load
• Check and adjust per manufacturer specs

Grade Operation

• Travel straight up and down slopes when possible
• Avoid extended side-hill operation
• Drive motors should be positioned per manufacturer recommendation (usually uphill)

Environmental Considerations

Cold Weather Starting

• Allow warm-up before travel
• Cold oil doesn’t flow properly
• Consider block heaters in extreme cold

Wet Conditions

• Water accelerates seal deterioration
• Inspect seals more frequently
• Address any leaks immediately

Dusty/Sandy Conditions

• Dirt is an abrasive seal killer
• Clean undercarriage more frequently
• Consider more frequent oil changes

Storage Practices

For machines in seasonal storage:

• Change oil before storage (removes contaminants)
• Store indoors if possible
• If outdoor storage, seal breathers to prevent moisture intrusion
• Run machine monthly if stored long-term

When to Rebuild vs Replace

When a final drive fails, you’ll face the rebuild vs. replace decision. Here’s how to evaluate:

Consider Rebuilding When:

• Damage is limited to seals and bearings
• Gears show minimal wear
• Housing is undamaged
• Quality rebuild facility is available
• Cost is 40-60% of replacement

Consider Replacing When:

• Gears are damaged or pitted
• Housing is cracked or scored
• Multiple component failures
• Machine will be sold (new drive is selling point)
• Core charge makes rebuild less attractive

The Reman/Exchange Option

Many suppliers offer remanufactured exchanges:

• You get a rebuilt unit immediately
• Send your old core back
• Core charge refunded when received
• Often best balance of cost, quality, and downtime

Final Drive Maintenance Checklist

Use this checklist to stay on top of final drive maintenance:

Daily:

• Visual leak inspection (both sides)
• Listen for unusual noise during operation
• Note any pulling or tracking issues

Every 50 Hours:

• Clean housing exterior
• Inspect visible seals
• Check breather condition
• Verify mounting bolt torque

Every 250-500 Hours:

• Check oil level (plug horizontal)
• Assess oil condition
• Inspect magnetic plug (if equipped)
• Document in maintenance log

Every 1,000-2,000 Hours:

• Complete oil change
• Detailed seal inspection
• Replace breather
• Consider oil analysis

Conclusion

Your final drives are expensive, critical components that deserve attention. The math is simple: a few dollars in oil and a few minutes of inspection time can prevent five-figure repair bills.

The operators who get maximum life from their final drives share common traits:

• They check oil levels religiously
• They address leaks immediately—not “next week”
• They understand that small problems become big problems
• They keep detailed records of every service

Make final drive maintenance a non-negotiable part of your routine. Your bank account will thank you when you’re still running the original drives at 5,000+ hours while others are writing checks for replacements.

Your machine needs to move to make money. Keep those final drives healthy, and they’ll keep you moving.
